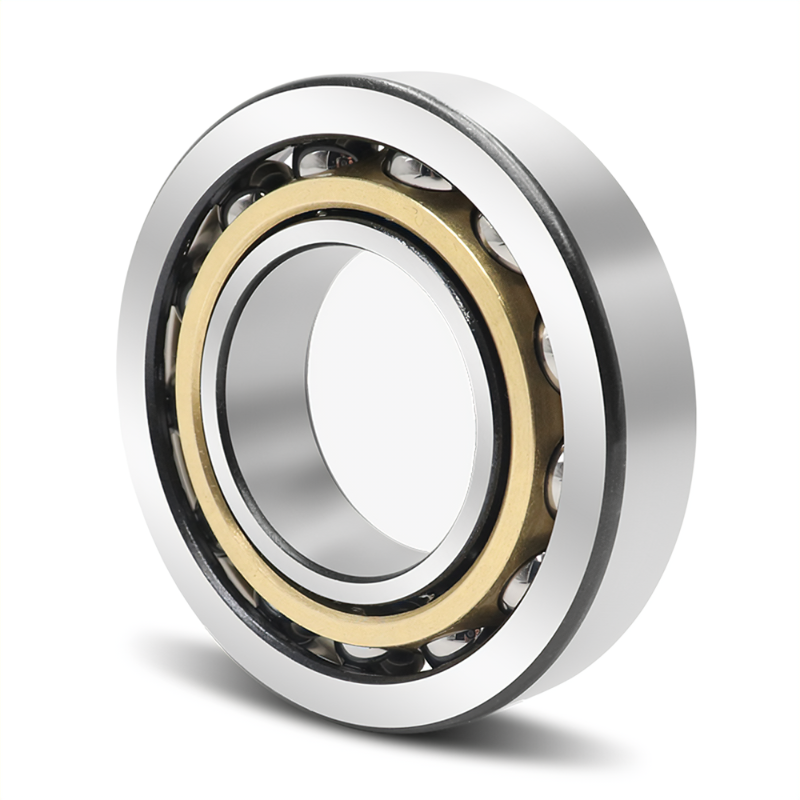

Jierun Bearing supplies a broad scope of angular contact ball bearings specially designed to withstand the demands of high-speed applications. These bearings are non-separable and have a contact angle which can accept radial and thrust loads. Although the angular contact bearings can accept thrust loads in only one direction, there are different contact angles available to transfer the load acting upon the bearing.
Common models of angular contact ball bearings available through Jierun Bearing include the 5200 Series, 5300 Series, 7000 Series, 7200 Series, 7300 Series, 7800 Series, 7900 Series, QJ200 Series, and the QJ300 Series.
FEATURES
BENEFITS
● High quality steel used in the manufacturing extends operational life
● Double row angular contact bearings act as a pair where less space is available
● Double row bearings are able to support tilting movements and can accept combined loads
● Three arrangements are available for single row angular contacts: face to face, back to back or in a tandem
SPECS
● Cage assemblies:pressed steel (J), brass (MP) or polyamide material (TVP)
● Tolerance: PN (standard), P6 (Abec 3), P5 (Abec 5) , P4 (Abec 7) or P2 (Abec 9)
● Standard contact angles:15, 25, 30 and 40 degrees
● Structure: open style or with closures.
● Standard closures are 2 metal shields (ZZ) or with 2 rubber seals (2RS)
● Can be manufactured with a standard set of balls (Conrad) or with a maximum set of balls (Max Type)
● Rolling element options include chrome steel balls or ceramic balls
APPLICATIONS
Angular contact ball bearings can be used in many different applications, including:
● Clutches
● Electric Motors
● Pumps
● Machine Tool
● Gearboxes
● Material Handling
● Medical
MANUFACTURERS
JRB SKF FAG NSK NTN KOYO NACHI
