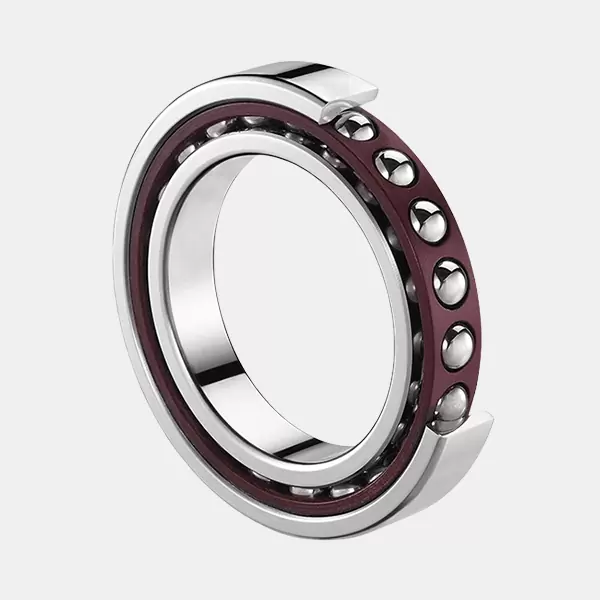

Angular Contact Ball Bearings

Angular Contact Ball Bearings

Angular Contact Ball Bearings

Send Inquiry

Description

Send Inquiry

70xxAC series

Bearing Number	d mm	D mm	B mm
7001AC	12	28	8
7002AC	15	32	9
7003AC	17	35	10
7004AC	20	42	12
7005AC	25	47	12
7006AC	30	55	13
7007AC	35	62	14
7008AC	40	68	15
7009AC	45	75	16
7010AC	50	80	16
7011AC	55	90	18
7012AC	60	95	18
7013AC	65	100	18
7014AC	70	110	20
7015AC	75	115	20
7016AC	80	125	22
7017AC	85	130	22
7018AC	90	140	24
7019AC	95	145	24
7020AC	100	150	24
7021AC	105	160	26

72xxC

Bearing Number	d mm	D mm	B mm
7200C	10	30	9
7201C	12	32	10
7202C	15	35	11
7203C	17	40	12
7204C	20	47	14
7205C	25	52	15
7206C	30	62	16
7207C	35	72	17
7208C	40	80	18
7209C	45	85	19
7210C	50	90	20
7211C	55	100	21
7212C	60	110	22
7213C	65	120	23
7214C	70	125	24

33xx series

Bearing Number	d mm	D mm	B mm
3302	15	42	19
3303	17	47	22.2
3304	20	52	25.4
3305	25	62	25.4
3306	30	72	30.2
3307	35	80	34.9
3308	40	90	36.5
3309	45	100	39.7
3310	50	110	44.4
3311	55	120	49.2
3312	60	130	54
3313	65	140	58.7
3314	70	150	63.5
3315	75	160	68.3

32xx series

Bearing Number	d mm	D mm	B mm
3200	10	30	14.3
3201	12	32	15.9
3202	15	35	15.9
3203	17	40	17.5
3204	20	47	20.6
3205	25	52	20.6
3206	30	62	23.8
3207	35	72	27
3208	40	80	30.2
3209	45	85	30.2
3210	50	90	30.2
3211	55	100	33.3
3212	60	110	36.5
3213	65	120	38.1
3214	70	125	39.7
3215	75	130	41.3
3216	60	140	44.4
3217	85	150	49.2
3218	90	160	52.4
3219	95	170	55.6
3220	100	180	60.3

7xxxBEP

Bearing Number	d mm	D mm	B mm
7200 BECBP 7200 BEP	10	30	9
7201 BECBP 7201 BEP	12	32	10
– 7301 BEP	12	37	12
7202 BECBP 7202 BEP	15	35	11
7302 BECBP 7302 BEP	15	42	13
7203 BECBP –	17	40	12
– 7203 BEP		40	12
– 7203 BEY		40	12
7203 BECBM –		40	12
7303 BECBP 7303 BEP		47	14
7204 BECBP 7204 BEP	20	47	14
7204 BECBY –		47	14
7204 BECBM –		47	14
7304 BECBP –		52	15
– 7304 BEP		52	15
7304 BECBY 7304 BEY		52	15
7304 BECBM –		52	15
7205 BECBP –	25	52	15
– 7205 BEP		52	15
7205 BECBY 7205 BEY		52	15
7205 BECBM –		52	15
7305 BECBP –		62	17
– 7305 BEP		62	17
7305 BECBY 7305 BEY		62	17
7305 BECBM –		62	17
7206 BECBP –	30	62	16
– 7206 BEP		62	16
7206 BECBY 7206 BEY		62	16
7206 BECBM –		62	16
7306 BECBP –		72	19
– 7306 BEP		72	19
7306 BECBY 7306 BEY		72	19
7306 BECBM –		72	19
7207 BECBP –	35	72	17
– 7207 BEP		72	17
7207 BECBY 7207 BEY		72	17
7207 BECBM –		72	17
7307 BECBP –		80	21
– 7307 BEP		80	21
7307 BECBY 7307 BEY		80	21
7307 BECBM –		80	21

53xxE

Bearing Number	d mm	D mm	Bmm
5205 E	25	52	20.6
5206 E	30	62	23.8
5207 E	35	72	27.0
5208 E	40	80	30.2
5209 E	45	85	30.2
5210 E	50	90	30.2
5211 E	55	100	33.3
5212 E	60	110	36.5
5213 E	65	120	38.1
5214 E	70	125	39.7
5215 E	75	130	41.3
5216 E	80	140	44.4
5217 E	85	150	49.2
5218 E	90	160	52.4
5305 E	25	62	25.4
5306 E	30	72	30.2
5307 E	35	80	34.9
5308 E	40	90	36.5
5309 E	45	100	39.7
5310 E	50	110	44.4
5311 E	55	120	49.2
5312 E	60	130	54.0
5313 E	65	140	58.7
5314 E	70	150	63.5
5315 E	75	160	68.3
5316 E	80	170	68.3

QJ series

Bearing Number	d mm	D mm	B mm
QJ 202 N2MA –	15	35	11
QJ 203 N2MA QJ 203 MA	17	40	12
QJ 303 N2MA –	17	47	14
QJ 304 N2MA QJ 304 MA	20	52	15
QJ 205 N2MA QJ 205 MA	25	52	15
QJ 305 N2MA QJ 305 MA	25	62	17
QJ 206 N2MA QJ 206 MA	30	62	16
QJ 306 N2MA QJ 306 MA	30	72	19
QJ 207 N2MA QJ 207 MA	35	72	17
QJ 307 N2MA QJ 307 MA	35	80	21
QJ 208 N2MA QJ 208 MA	40	80	18
QJ 308 N2MA QJ 308 MA	40	90	23
– QJ 209 MA	45	85	19
QJ 309 N2MA QJ 309 MA	45	100	25
QJ 210 N2MA QJ 210 MA	50	90	20
– QJ 310 MA	50	110	27
QJ 211 N2MA QJ 211 MA	55	100	21
QJ 311 N2MA QJ 311 MA	55	120	29
QJ 212 N2MA QJ 212 MA	60	110	22
QJ 312 N2MA QJ 312 MA	60	130	31
QJ 213 N2MA QJ 213 MA	65	120	23
– QJ 313 MA	65	140	33
QJ 214 N2MA QJ 214 MA	70	125	24
QJ 314 N2MA QJ 314 MA	70	150	35
QJ 215 N2MA QJ 215 MA	75	130	25
QJ 315 N2MA –	75	160	37
QJ 216 N2MA QJ 216 MA	80	140	26
QJ 316 N2MA –	80	170	39
QJ 217 N2MA QJ 217 MA	85	150	28
QJ 317 N2MA –	85	180	41
QJ 218 N2MA –	90	160	30
QJ 318 N2MA –	90	190	43

74xx-D series

Bearing Number	d mm	D mm	B mm
7403-D	17	62	34
7404-D	20	72	38
7405-D	25	80	42
7406-D	30	90	46
7407-D	35	100	50
7408-D	40	110	54
7409-D	45	120	58
7410-D	50	130	62
7411-D	55	140	66
7412-D	60	150	70
7413-D	65	160	74
7414-D	70	180	84
7415-D	75	190	90
7416-D	80	200	96
7417-D	85	210	104
7418-D	90	225	108
7419-D	95	250	110
7420-D	100	265	120
7421-D	105	290	130
7422-D	110	320	140

719 series

Bearing Number	d mm	D mm	B mm
71900CTA	10	22	6
71901CTA	12	24	6
71902CTA	15	28	7
71903CTA	17	30	7
71904CTA	20	37	9
71905CTA	25	42	9
71906CTA	30	47	9
71907CTA	35	55	10
71908CTA	40	62	12
71909CTA	45	68	12
71910CTA	50	72	12
71911CTA	55	80	13
71912CTA	60	85	13
71913CTA	65	90	13
71914CTA	70	100	16
71915CTA	75	105	16
71916CTA	80	110	16
71917CTA	85	120	16
71918CTA	90	125	18

Series paired double angular contact ball bearings

Bearing Number	d mm	D mm	B mm
71901C/DT	12	24	12
71902C/DT	15	28	14
71903C/DT	17	30	14
71904C/DT	20	37	18
71905C/DT	25	42	18
71906C/DT	30	47	18
71907C/DT	35	55	20
71908C/DT	40	62	24
71909C/DT	45	68	24
71910C/DT	50	72	24
71911C/DT	55	80	26
71912C/DT	60	85	26
71901C/DB	12	24	12
71902C/DB	15	28	14
71903C/DB	17	30	14
71904C/DB	20	37	18
71905C/DB	25	42	18
71906C/DB	30	47	18
71907C/DB	35	55	20
71908C/DB	40	62	24
71909C/DB	45	68	24
71910C/DB	50	72	24
71911C/DB	55	80	26
71912C/DB	60	85	26
71901C/DF	12	24	12
71902C/DF	15	28	14
71903C/DF	17	30	14
71904C/DF	20	37	18
71905C/DF	25	42	18
71906C/DF	30	47	18
71907C/DF	35	55	20
71908C/DF	40	62	24
71909C/DF	45	68	24
71910C/DF	50	72	24
71911C/DF	55	80	26
71912C/DF	60	85	26

Excavator bearings

Bearing Number	d mm	D mm	H mm
AC5836	289	355	34
AC5033	250	330	37
AC463240	230	320	40
AC4629	230	290	27
AC4531	225	315	36
AC423040	210	300	40
AC4630	230	300	35
AC6037	300	370	33
AC4631	230	310	39
AC523438-1	260	340	38
BA195-3A	195	280	36.5
BA152-2036	150	203	26
BA222-1WSA	222	273	26
BA220-6WSA	220	276	26
BA240-3WSA	240	310	33.5
BA230-7WSA	230	300	35
BA180-4WSA	180	250	33
BA280-2WSA	280	370	40
BA300-4WSA	300	395	50
BA205-1	202	295	40
BA180-2256	180	225	21.5
BA184-2251	184	226	21.5
BA290-3A	290	280	40
BA250-4A	250	330	38
BA246-2A	246	313	32
BA289-1	289	355	33
BA210-10	300	280	38
BA300-5	300	380	40
BA230-2	230	320	40
BA260-3	260	340	38
BA260-4	260	340	38
BA220-1	220	280	28
BA270-3	270	350	40
BA16519	165	203	19
120BA16	120	165	22
260BA355-2	260	355	44
180BN19W	180	250	33
MC6034	600	340	18
BA168-1	168	205	20
BA200-7B	200	250	24
SF2812PX1	140	175	17.5
SF3227VPX1	160	200	10
SF3607	180	225	24
SF4826VPX1	240	310	33
SF4852VPX1	240	310	33
SF4820PX1	240	310	34
SF4815VPX1	240	310	34
SF4831VPX1	240	310	33.4
SF4007VPX1	200	250	24
SF4019VPX1	200	260	30
SF3235VPX1	260	330	35
SF4444VPX1	220	295	32
SF4454VPX1	220	295	33
SF4411VPX1	220	290	32.5
SF6015PX1	300	372	36
200BA27V	200	270	33
210BA29V	210	295	35
240BA3251	240	320	38
BD130-1WSA	130	166	34
SF4411VPX1	220x290x32.5 mm
SF4820PX1	240x310x34 mm
BA195-3A	195x280x36.5 mm
BA300-5	300x380x40 mm
BA210-10	200x280x38 mm
BA220-6WSA	220x276x26 mm
561904P6X	127x170x27 mm
BA300-1WSA	300x390x40 mm
BA260-4	260x340x38 mm
BA246-2SA	246x313x32 mm
ca1688452	160x290x220 mm
260BA355-2	260x355x44mm
210BA29V	210x295x35 mm
BA280-2WSA	280x370x40 mm
BA184-2251	184x226x21.5 mm
AC4631	230x310x39 mm
BA240-3WSA	240x310x33.5 mm
BA250-4A	330x250x38mm

Precision bearings

Bearing Number	d mm	D mm	B mm
15TAC47C	15	47	15
17TAC47C	17	47	15
20TAC47C	20	47	15
25TAC62C	25	62	15
30TAC62C	30	62	12
35TAC72C	35	72	15
40TAC72C	40	72	15
40TAC90C	40	90	20
45TAC75C	45	75	15
45TAC100C	45	100	20
50TAC100C	50	100	20
55TAC100C	55	100	20
55TAC120C	55	120	20
60TAC120C	60	120	20
15TAC47B	15	47	15
17TAC47B	17	47	15
20TAC47B	20	47	15
25TAC62B	25	62	15
30TAC62B	30	62	12
35TAC72B	35	72	15
40TAC72B	40	72	15
40TAC90B	40	90	20
45TAC75B	45	75	15
45TAC100B	45	100	20
50TAC100B	50	100	20
55TAC100B	55	100	20
55TAC120B	55	120	20
60TAC120B	60	120	20
15TAC47BDDG	15	47	15
17TAC47BDDG	17	47	15
20TAC47BDDG	20	47	15
25TAC62BDDG	25	62	15
30TAC62BDDG	30	62	12
35TAC72BDDG	35	72	15
40TAC72BDDG	40	72	15
40TAC90BDDG	40	90	20
45TAC100BDDG	45	100	20
15TAC02AT85	15	35	11
25TAC02AT85	25	32	15
TAC35-2T85	35	90	23
40TAC03AT85	40	90	23
45TAC03AT85	45	100	25
TAC45-2T85	45	110	27
50TAC03AT85	50	110	27
55TAC03AT85	55	120	29
60TAC03AT85	60	130	31
80TAC03AM	80	170	39
100TAC03CMC	100	215	47
120TAC03CMC	120	260	55
15TAC47BSU10PN7B	15	47	15
17TAC47BSU10PN7B	17	47	15
20TAC47BSU10PN7B	20	47	15
25TAC62BSU10PN7B	25	62	15
30TAC62BSU10PN7B	30	62	15
35TAC72BSU10PN7B	35	72	15
40TAC72BSU10PN7B	40	72	15
40TAC90BSU10PN7B	40	90	20
45TAC100BSU10PN7B	45	75	15
50TAC100BSU10PN7B	50	100	20
55TAC100BSU10PN7B	55	100	20
55TAC120BSU10PN7B	55	120	20
60TAC120BSU10PN7B	60	120	20
15TAC47CDDGSUHPN7C	15	47	15
17TAC47CDDGSUHPN7C	17	47	15
20TAC47CDDGSUHPN7C	20	47	15
25TAC62CDDGSUHPN7C	25	62	15
30TAC62CDDGSUHPN7C	30	62	15
35TAC72CDDGSUHPN7C	35	72	15
40TAC72CDDGSUHPN7C	40	72	15
40TAC90CDDGSUHPN7C	40	90	20
50TAC100CDDGSUHPN7C	50	100	20
