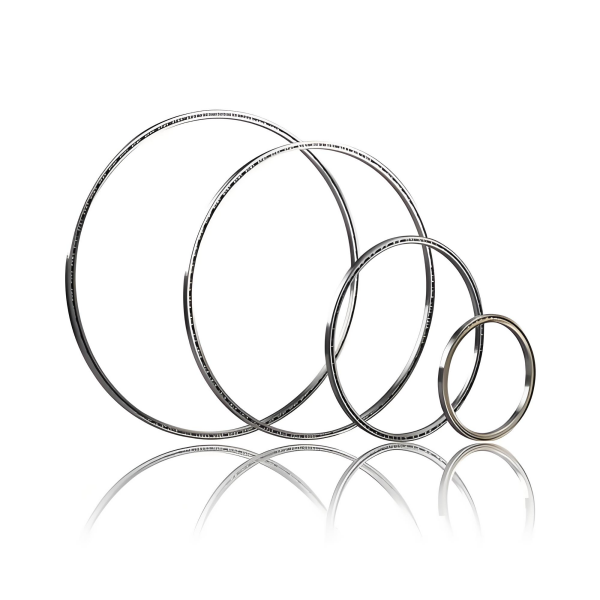

Thin Section Open Bearings
| Bearing Number | BEARING TYPE | Bore Dia d | Outside Dia D | Width B | Seal Type | Cage Material |
| KAA10AG0 | Angular | 1.000" | 1.375" | 0.1875" | Open | Nylon |
| KAA15AG0 | Angular | 1.500" | 1.875" | 0.1875" | Open | Nylon |
| KAA17AG0 | Angular | 1.750" | 2.125" | 0.1875" | Open | Nylon |
| KAA10CL0 | Radial | 1.000" | 1.375" | 0.1875" | Open | Nylon |
| KAA15CL0 | Radial | 1.500" | 1.875" | 0.1875" | Open | Nylon |
| KAA17CL0 | Radial | 1.750" | 2.125" | 0.1875" | Open | Nylon |
| KAA10XL0 | Four Point | 1.000" | 1.375" | 0.1875" | Open | Nylon |
| KAA15XL0 | Four Point | 1.500" | 1.875" | 0.1875" | Open | Nylon |
| KAA17XL0 | Four Point | 1.750" | 2.125" | 0.1875" | Open | Nylon |
| KA020AR0 | Angular | 2.000" | 2.500" | 0.25" | Open | Brass |
| KA025AR0 | Angular | 2.500" | 3.000" | 0.25" | Open | Brass |
| KA030AR0 | Angular | 3.000" | 3.500" | 0.25" | Open | Brass |
| KA035AR0 | Angular | 3.500" | 4.000" | 0.25" | Open | Brass |
| KA040AR0 | Angular | 4.000" | 4.500" | 0.25" | Open | Brass |
| KA042AR0 | Angular | 4.250" | 4.750" | 0.25" | Open | Brass |
| KA045AR0 | Angular | 4.500" | 5.000" | 0.25" | Open | Brass |
| KA047AR0 | Angular | 4.750" | 5.250" | 0.25" | Open | Brass |
| KA050AR0 | Angular | 5.000" | 5.500" | 0.25" | Open | Brass |
| KA055AR0 | Angular | 5.500" | 6.000" | 0.25" | Open | Brass |
| KA060AR0 | Angular | 6.000" | 6.500" | 0.25" | Open | Brass |
| KA065AR0 | Angular | 6.500" | 7.000" | 0.25" | Open | Brass |
| KA070AR0 | Angular | 7.000" | 7.500" | 0.25" | Open | Brass |
| KA075AR0 | Angular | 7.500" | 8.000" | 0.25" | Open | Brass |
| KA080AR0 | Angular | 8.000" | 8.500" | 0.25" | Open | Brass |
| KA090AR0 | Angular | 9.000" | 9.500" | 0.25" | Open | Brass |
| KA100AR0 | Angular | 10.000" | 10.500" | 0.25" | Open | Brass |
| KA110AR0 | Angular | 11.000" | 11.500" | 0.25" | Open | Brass |
| KA120AR0 | Angular | 12.000" | 12.500" | 0.25" | Open | Brass |
| KA020CP0 | Radial | 2.000" | 2.500" | 0.25" | Open | Brass |
| KA025CP0 | Radial | 2.500" | 3.000" | 0.25" | Open | Brass |
| KA030CP0 | Radial | 3.000" | 3.500" | 0.25" | Open | Brass |
| KA035CP0 | Radial | 3.500" | 4.000" | 0.25" | Open | Brass |
| KA040CP0 | Radial | 4.000" | 4.500" | 0.25" | Open | Brass |
| KA042CP0 | Radial | 4.250" | 4.750" | 0.25" | Open | Brass |
| KA045CP0 | Radial | 4.500" | 5.000" | 0.25" | Open | Brass |
| KA047CP0 | Radial | 4.750" | 5.250" | 0.25" | Open | Brass |
| KA050CP0 | Radial | 5.000" | 5.500" | 0.25" | Open | Brass |
| KA055CP0 | Radial | 5.500" | 6.000" | 0.25" | Open | Brass |
| KA060CP0 | Radial | 6.000" | 6.500" | 0.25" | Open | Brass |
| KA065CP0 | Radial | 6.500" | 7.000" | 0.25" | Open | Brass |
| KA070CP0 | Radial | 7.000" | 7.500" | 0.25" | Open | Brass |
| KA075CP0 | Radial | 7.500" | 8.000" | 0.25" | Open | Brass |
| KA080CP0 | Radial | 8.000" | 8.500" | 0.25" | Open | Brass |
| KA090CP0 | Radial | 9.000" | 9.500" | 0.25" | Open | Brass |
| KA100CP0 | Radial | 10.000" | 10.500" | 0.25" | Open | Brass |
| KA110CP0 | Radial | 11.000" | 11.500" | 0.25" | Open | Brass |
| KA120CP0 | Radial | 12.000" | 12.500" | 0.25" | Open | Brass |
| KA020XP0 | Four Point | 2.000" | 2.500" | 0.25" | Open | Brass |
| KA025XP0 | 2.500" | 3.000" | 0.25" | 0.13 | Open | Brass |
| KA027XP0 | Four Point | 2.750" | 3.250" | 0.25" | Open | Brass |
| KA030XP0 | Four Point | 3.000" | 3.500" | 0.25" | Open | Brass |
| KA035XP0 | Four Point | 3.500" | 4.000" | 0.25" | Open | Brass |
| KA040XP0 | Four Point | 4.000" | 4.500" | 0.25" | Open | Brass |
| KA042XP0 | Four Point | 4.250" | 4.750" | 0.25" | Open | Brass |
| KA045XP0 | Four Point | 4.500" | 5.000" | 0.25" | Open | Brass |
| KA047XP0 | Four Point | 4.750" | 5.250" | 0.25" | Open | Brass |
| KA050XP0 | Four Point | 5.000" | 5.500" | 0.25" | Open | Brass |
| KA055XP0 | Four Point | 5.500" | 6.000" | 0.25" | Open | Brass |
| KA060XP0 | Four Point | 6.000" | 6.500" | 0.25" | Open | Brass |
| KA065XP0 | Four Point | 6.500" | 7.000" | 0.25" | Open | Brass |
| KA070XP0 | Four Point | 7.000" | 7.500" | 0.25" | Open | Brass |
| KA075XP0 | Four Point | 7.500" | 8.000" | 0.25" | Open | Brass |
| KA080XP0 | Four Point | 8.000" | 8.500" | 0.25" | Open | Brass |
| KA090XP0 | Four Point | 9.000" | 9.500" | 0.25" | Open | Brass |
| KA100XP0 | Four Point | 10.000" | 10.500" | 0.25" | Open | Brass |
| KA110XP0 | Four Point | 11.000" | 11.500" | 0.25" | Open | Brass |
| KA120XP0 | Four Point | 12.000" | 12.500" | 0.25" | Open | Brass |
| KB020AR0 | Angular | 2.000" | 2.625" | 0.3125" | Open | Brass |
| KB025AR0 | Angular | 2.500" | 3.125" | 0.3125" | Open | Brass |
| KB030AR0 | Angular | 3.000" | 3.625" | 0.3125" | Open | Brass |
| KB035AR0 | Angular | 3.500" | 4.125" | 0.3125" | Open | Brass |
| KB040AR0 | Angular | 4.000" | 4.625" | 0.3125" | Open | Brass |
| KB042AR0 | Angular | 4.250" | 4.875" | 0.3125" | Open | Brass |
| KB045AR0 | Angular | 4.500" | 5.125" | 0.3125" | Open | Brass |
| KB047AR0 | Angular | 4.750" | 5.375" | 0.3125" | Open | Brass |
| KB050AR0 | Angular | 5.000" | 5.625" | 0.3125" | Open | Brass |
| KB055AR0 | Angular | 5.500" | 6.125" | 0.3125" | Open | Brass |
| KB060AR0 | Angular | 6.000" | 6.625" | 0.3125" | Open | Brass |
| KB065AR0 | Angular | 6.500" | 7.125" | 0.3125" | Open | Brass |
| KB070AR0 | Angular | 7.000" | 7.625" | 0.3125" | Open | Brass |
| KB075AR0 | Angular | 7.500" | 8.125" | 0.3125" | Open | Brass |
| KB080AR0 | Angular | 8.000" | 8.625" | 0.3125" | Open | Brass |
| KB090AR0 | Angular | 9.000" | 9.625" | 0.3125" | Open | Brass |
| KB100AR0 | Angular | 10.000" | 10.625" | 0.3125" | Open | Brass |
| KB110AR0 | Angular | 11.000" | 11.625" | 0.3125" | Open | Brass |
| KB120AR0 | Angular | 12.000" | 12.625" | 0.3125" | Open | Brass |
| KB140AR0 | Angular | 14.000" | 14.625" | 0.3125" | Open | Brass |
| KB160AR0 | Angular | 16.000" | 16.625" | 0.3125" | Open | Brass |
| KB180AR0 | Angular | 18.000" | 18.625" | 0.3125" | Open | Brass |
| KB200AR0 | Angular | 20.000" | 20.625" | 0.3125" | Open | Brass |
| KB020CP0 | Radial | 2.000" | 2.625" | 0.3125" | Open | Brass |
| KB025CP0 | Radial | 2.500" | 3.125" | 0.3125" | Open | Brass |
| KB030CP0 | Radial | 3.000" | 3.625" | 0.3125" | Open | Brass |
| KB035CP0 | Radial | 3.500" | 4.125" | 0.3125" | Open | Brass |
| KB040CP0 | Radial | 4.000" | 4.625" | 0.3125" | Open | Brass |
| KB042CP0 | Radial | 4.250" | 4.875" | 0.3125" | Open | Brass |
| KB045CP0 | Radial | 4.500" | 5.125" | 0.3125" | Open | Brass |
| KB047CP0 | Radial | 4.750" | 5.375" | 0.3125" | Open | Brass |
| KB050CP0 | Radial | 5.000" | 5.625" | 0.3125" | Open | Brass |
| KB055CP0 | Radial | 5.500" | 6.125" | 0.3125" | Open | Brass |
| KB060CP0 | Radial | 6.000" | 6.625" | 0.3125" | Open | Brass |
| KB065CP0 | Radial | 6.500" | 7.125" | 0.3125" | Open | Brass |
| KB070CP0 | Radial | 7.000" | 7.625" | 0.3125" | Open | Brass |
| KB075CP0 | Radial | 7.500" | 8.125" | 0.3125" | Open | Brass |
| KB080CP0 | Radial | 8.000" | 8.625" | 0.3125" | Open | Brass |
| KB090CP0 | Radial | 9.000" | 9.625" | 0.3125" | Open | Brass |
| KB100CP0 | Radial | 10.000" | 10.625" | 0.3125" | Open | Brass |
| KB110CP0 | Radial | 11.000" | 11.625" | 0.3125" | Open | Brass |
| KB120CP0 | Radial | 12.000" | 12.625" | 0.3125" | Open | Brass |
| KB140CP0 | Radial | 14.000" | 14.625" | 0.3125" | Open | Brass |
| KB160CP0 | Radial | 16.000" | 16.625" | 0.3125" | Open | Brass |
| KB180CP0 | Radial | 18.000" | 18.625" | 0.3125" | Open | Brass |
| KB200CP0 | Radial | 20.000" | 20.625" | 0.3125" | Open | Brass |
| KB020XP0 | Four Point | 2.000" | 2.625" | 0.3125" | Open | Brass |
| KB025XP0 | Four Point | 2.500" | 3.125" | 0.3125" | Open | Brass |
| KB030XP0 | Four Point | 3.000" | 3.625" | 0.3125" | Open | Brass |
| KB035XP0 | Four Point | 3.500" | 4.125" | 0.3125" | Open | Brass |
| KB040XP0 | Four Point | 4.000" | 4.625" | 0.3125" | Open | Brass |
| KB042XP0 | Four Point | 4.250" | 4.875" | 0.3125" | Open | Brass |
| KB045XP0 | Four Point | 4.500" | 5.125" | 0.3125" | Open | Brass |
| KB047XP0 | Four Point | 4.750" | 5.375" | 0.3125" | Open | Brass |
| KB050XP0 | Four Point | 5.000" | 5.625" | 0.3125" | Open | Brass |
| KB055XP0 | Four Point | 5.500" | 6.125" | 0.3125" | Open | Brass |
| KB060XP0 | Four Point | 6.000" | 6.625" | 0.3125" | Open | Brass |
| KB065XP0 | Four Point | 6.500" | 7.125" | 0.3125" | Open | Brass |
| KB070XP0 | Four Point | 7.000" | 7.625" | 0.3125" | Open | Brass |
| KB075XP0 | Four Point | 7.500" | 8.125" | 0.3125" | Open | Brass |
| KB080XP0 | Four Point | 8.000" | 8.625" | 0.3125" | Open | Brass |
| KB090XP0 | Four Point | 9.000" | 9.625" | 0.3125" | Open | Brass |
| KB100XP0 | Four Point | 10.000" | 10.625" | 0.3125" | Open | Brass |
| KB110XP0 | Four Point | 11.000" | 11.625" | 0.3125" | Open | Brass |
| KB120XP0 | Four Point | 12.000" | 12.625" | 0.3125" | Open | Brass |
| KB140XP0 | Four Point | 14.000" | 14.625" | 0.3125" | Open | Brass |
| KB160XP0 | Four Point | 16.000" | 16.625" | 0.3125" | Open | Brass |
| KB180XP0 | Four Point | 18.000" | 18.625" | 0.3125" | Open | Brass |
| KB200XP0 | Four Point | 20.000" | 20.625" | 0.3125" | Open | Brass |
| KC040AR0 | Angular | 4.000" | 4.750" | 0.375" | Open | Brass |
| KC042AR0 | Angular | 4.250" | 5.000" | 0.375" | Open | Brass |
| KC045AR0 | Angular | 4.500" | 5.250" | 0.375" | Open | Brass |
| KC047AR0 | Angular | 4.750" | 5.500" | 0.375" | Open | Brass |
| KC050AR0 | Angular | 5.000" | 5.750" | 0.375" | Open | Brass |
| KC055AR0 | Angular | 5.500" | 6.250" | 0.375" | Open | Brass |
| KC060AR0 | Angular | 6.000" | 6.750" | 0.375" | Open | Brass |
| KC065AR0 | Angular | 6.500" | 7.250" | 0.375" | Open | Brass |
| KC070AR0 | Angular | 7.000" | 7.750" | 0.375" | Open | Brass |
| KC075AR0 | Angular | 7.500" | 8.250" | 0.375" | Open | Brass |
| KC080AR0 | Angular | 8.000" | 8.750" | 0.375" | Open | Brass |
| KC090AR0 | Angular | 9.000" | 9.750" | 0.375" | Open | Brass |
| KC100AR0 | Angular | 10.000" | 10.750" | 0.375" | Open | Brass |
| KC110AR0 | Angular | 11.000" | 11.750" | 0.375" | Open | Brass |
| KC120AR0 | Angular | 12.000" | 12.750" | 0.375" | Open | Brass |
| KC140AR0 | Angular | 14.000" | 14.750" | 0.375" | Open | Brass |
| KC160AR0 | Angular | 16.000" | 16.750" | 0.375" | Open | Brass |
| KC180AR0 | Angular | 18.000" | 18.750" | 0.375" | Open | Brass |
| KC200AR0 | Angular | 20.000" | 20.750" | 0.375" | Open | Brass |
| KC250AR0 | Angular | 25.000" | 25.750" | 0.375" | Open | Brass |
| KC300AR0 | Angular | 30.000" | 30.750" | 0.375" | Open | Brass |
| KC040CP0 | Radial | 4.000" | 4.750" | 0.375" | Open | Brass |
| KC042CP0 | Radial | 4.250" | 5.000" | 0.375" | Open | Brass |
| KC045CP0 | Radial | 4.500" | 5.250" | 0.375" | Open | Brass |
| KC047CP0 | Radial | 4.750" | 5.500" | 0.375" | Open | Brass |
| KC050CP0 | Radial | 5.000" | 5.750" | 0.375" | Open | Brass |
| KC055CP0 | Radial | 5.500" | 6.250" | 0.375" | Open | Brass |
| KC060CP0 | Radial | 6.000" | 6.750" | 0.375" | Open | Brass |
| KC065CP0 | Radial | 6.500" | 7.250" | 0.375" | Open | Brass |
| KC070CP0 | Radial | 7.000" | 7.750" | 0.375" | Open | Brass |
| KC075CP0 | Radial | 7.500" | 8.250" | 0.375" | Open | Brass |
| KC080CP0 | Radial | 8.000" | 8.750" | 0.375" | Open | Brass |
| KC090CP0 | Radial | 9.000" | 9.750" | 0.375" | Open | Brass |
| KC100CP0 | Radial | 10.000" | 10.750" | 0.375" | Open | Brass |
| KC110CP0 | Radial | 11.000" | 11.750" | 0.375" | Open | Brass |
| KC120CP0 | Radial | 12.000" | 12.750" | 0.375" | Open | Brass |
| KC140CP0 | Radial | 14.000" | 14.750" | 0.375" | Open | Brass |
| KC160CP0 | Radial | 16.000" | 16.750" | 0.375" | Open | Brass |
| KC180CP0 | Radial | 18.000" | 18.750" | 0.375" | Open | Brass |
| KC200CP0 | Radial | 20.000" | 20.750" | 0.375" | Open | Brass |
| KC250CP0 | Radial | 25.000" | 25.750" | 0.375" | Open | Brass |
| KC300CP0 | Radial | 30.000" | 30.750" | 0.375" | Open | Brass |
| KC040XP0 | Four Point | 4.000" | 4.750" | 0.375" | Open | Brass |
| KC042XP0 | Four Point | 4.250" | 5.000" | 0.375" | Open | Brass |
| KC045XP0 | Four Point | 4.500" | 5.250" | 0.375" | Open | Brass |
| KC047XP0 | Four Point | 4.750" | 5.500" | 0.375" | Open | Brass |
| KC050XP0 | Four Point | 5.000" | 5.750" | 0.375" | Open | Brass |
| KC055XP0 | Four Point | 5.500" | 6.250" | 0.375" | Open | Brass |
| KC060XP0 | Four Point | 6.000" | 6.750" | 0.375" | Open | Brass |
| KC065XP0 | Four Point | 6.500" | 7.250" | 0.375" | Open | Brass |
| KC070XP0 | Four Point | 7.000" | 7.750" | 0.375" | Open | Brass |
| KC075XP0 | Four Point | 7.500" | 8.250" | 0.375" | Open | Brass |
| KC080XP0 | Four Point | 8.000" | 8.750" | 0.375" | Open | Brass |
| KC090XP0 | Four Point | 9.000" | 9.750" | 0.375" | Open | Brass |
| KC100XP0 | Four Point | 10.000" | 10.750" | 0.375" | Open | Brass |
| KC110XP0 | Four Point | 11.000" | 11.750" | 0.375" | Open | Brass |
| KC100XP0 | Four Point | 12.000" | 12.750" | 0.375" | Open | Brass |
| KC140XP0 | Four Point | 14.000" | 14.750" | 0.375" | Open | Brass |
| KC160XP0 | Four Point | 16.000" | 16.750" | 0.375" | Open | Brass |
| KC180XP0 | Four Point | 18.000" | 18.750" | 0.375" | Open | Brass |
| KC200XP0 | Four Point | 20.000" | 20.750" | 0.375" | Open | Brass |
| KC250XP0 | Four Point | 25.000" | 25.750" | 0.375" | Open | Brass |
| KC300XP0 | Four Point | 30.000" | 30.750" | 0.375" | Open | Brass |
| KD040AR0 | Angular | 4.000" | 5.000" | 0.5" | Open | Brass |
| KD042AR0 | Angular | 4.250" | 5.250" | 0.5" | Open | Brass |
| KD045AR0 | Angular | 4.500" | 5.500" | 0.5" | Open | Brass |
| KD047AR0 | Angular | 4.750" | 5.750" | 0.5" | Open | Brass |
| KD050AR0 | Angular | 5.000" | 6.000" | 0.5" | Open | Brass |
| KD055AR0 | Angular | 5.500" | 6.500" | 0.5" | Open | Brass |
| KD060AR0 | Angular | 6.000" | 7.000" | 0.5" | Open | Brass |
| KD065AR0 | Angular | 6.500" | 7.500" | 0.5" | Open | Brass |
| KD070AR0 | Angular | 7.000" | 8.000" | 0.5" | Open | Brass |
| KD075AR0 | Angular | 7.500" | 8.500" | 0.5" | Open | Brass |
| KD080AR0 | Angular | 8.000" | 9.000" | 0.5" | Open | Brass |
| KD090AR0 | Angular | 9.000" | 10.000" | 0.5" | Open | Brass |
| KD100AR0 | Angular | 10.000" | 11.000" | 0.5" | Open | Brass |
| KD110AR0 | Angular | 11.000" | 12.000" | 0.5" | Open | Brass |
| KD120AR0 | Angular | 12.000" | 13.000" | 0.5" | Open | Brass |
| KD140AR0 | Angular | 14.000" | 15.000" | 0.5" | Open | Brass |
| KD160AR0 | Angular | 16.000" | 17.000" | 0.5" | Open | Brass |
| KD180AR0 | Angular | 18.000" | 19.000" | 0.5" | Open | Brass |
| KD200AR0 | Angular | 20.000" | 21.000" | 0.5" | Open | Brass |
| KD210AR0 | Angular | 21.000" | 22.000" | 0.5" | Open | Brass |
| KD250AR0 | Angular | 25.000" | 26.000" | 0.5" | Open | Brass |
| KD300AR0 | Angular | 30.000" | 31.000" | 0.5" | Open | Brass |
| KD040CP0 | Radial | 4.000" | 5.000" | 0.5" | Open | Brass |
| KD042CP0 | Radial | 4.250" | 5.250" | 0.5" | Open | Brass |
| KD045CP0 | Radial | 4.500" | 5.500" | 0.5" | Open | Brass |
| KD047CP0 | Radial | 4.750" | 5.750" | 0.5" | Open | Brass |
| KD050CP0 | Radial | 5.000" | 6.000" | 0.5" | Open | Brass |
| KD055CP0 | Radial | 5.500" | 6.500" | 0.5" | Open | Brass |
| KD060CP0 | Radial | 6.000" | 7.000" | 0.5" | Open | Brass |
| KD065CP0 | Radial | 6.500" | 7.500" | 0.5" | Open | Brass |
| KD070CP0 | Radial | 7.000" | 8.000" | 0.5" | Open | Brass |
| KD075CP0 | Radial | 7.500" | 8.500" | 0.5" | Open | Brass |
| KD080CP0 | Radial | 8.000" | 9.000" | 0.5" | Open | Brass |
| KD090CP0 | Radial | 9.000" | 10.000" | 0.5" | Open | Brass |
| KD100CP0 | Radial | 10.000" | 11.000" | 0.5" | Open | Brass |
| KD110CP0 | Radial | 11.000" | 12.000" | 0.5" | Open | Brass |
| KD120CP0 | Radial | 12.000" | 13.000" | 0.5" | Open | Brass |
| KD140CP0 | Radial | 14.000" | 15.000" | 0.5" | Open | Brass |
| KD160CP0 | Radial | 16.000" | 17.000" | 0.5" | Open | Brass |
| KD180CP0 | Radial | 18.000" | 19.000" | 0.5" | Open | Brass |
| KD180XP0 | Radial | 18.000" | 19.000" | 0.5" | Open | Brass |
| KD200CP0 | Radial | 20.000" | 21.000" | 0.5" | Open | Brass |
| KD210CP0 | Radial | 21.000" | 22.000" | 0.5" | Open | Brass |
| KD250CP0 | Radial | 25.000" | 26.000" | 0.5" | Open | Brass |
| KD300CP0 | Radial | 30.000" | 31.000" | 0.5" | Open | Brass |
| KD040XP0 | Four Point | 4.000" | 5.000" | 0.5" | Open | Brass |
| KD042XP0 | Four Point | 4.250" | 5.250" | 0.5" | Open | Brass |
| KD045XP0 | Four Point | 4.500" | 5.500" | 0.5" | Open | Brass |
| KD047XP0 | Four Point | 4.750" | 5.750" | 0.5" | Open | Brass |
| KD050XP0 | Four Point | 5.000" | 6.000" | 0.5" | Open | Brass |
| KD055XP0 | Four Point | 5.500" | 6.500" | 0.5" | Open | Brass |
| KD060XP0 | Four Point | 6.000" | 7.000" | 0.5" | Open | Brass |
| KD065XP0 | Four Point | 6.500" | 7.500" | 0.5" | Open | Brass |
| KD070XP0 | Four Point | 7.000" | 8.000" | 0.5" | Open | Brass |
| KD075XP0 | Four Point | 7.500" | 8.500" | 0.5" | Open | Brass |
| KD080XP0 | Four Point | 8.000" | 9.000" | 0.5" | Open | Brass |
| KD090XP0 | Four Point | 9.000" | 10.000" | 0.5" | Open | Brass |
| KD100XP0 | Four Point | 10.000" | 11.000" | 0.5" | Open | Brass |
| KD110XP0 | Four Point | 11.000" | 12.000" | 0.5" | Open | Brass |
| KD120XP0 | Four Point | 12.000" | 13.000" | 0.5" | Open | Brass |
| KD140XP0 | Four Point | 14.000" | 15.000" | 0.5" | Open | Brass |
| KD160XP0 | Four Point | 16.000" | 17.000" | 0.5" | Open | Brass |
| KD200XP0 | Four Point | 20.000" | 21.000" | 0.5" | Open | Brass |
| KD210XP0 | Four Point | 21.000" | 22.000" | 0.5" | Open | Brass |
| KD250XP0 | Four Point | 25.000" | 26.000" | 0.5" | Open | Brass |
| KD300XP0 | Four Point | 30.000" | 31.000" | 0.5" | Open | Brass |
| KF040AR0 | Angular | 4.000" | 5.500" | 0.75" | Open | Brass |
| KF042AR0 | Angular | 4.250" | 5.750" | 0.75" | Open | Brass |
| KF045AR0 | Angular | 4.500" | 6.000" | 0.75" | Open | Brass |
| KF047AR0 | Angular | 4.750" | 6.250" | 0.75" | Open | Brass |
| KF050AR0 | Angular | 5.000" | 6.500" | 0.75" | Open | Brass |
| KF055AR0 | Angular | 5.500" | 7.000" | 0.75" | Open | Brass |
| KF060AR0 | Angular | 6.000" | 7.500" | 0.75" | Open | Brass |
| KF065AR0 | Angular | 6.500" | 8.000" | 0.75" | Open | Brass |
| KF070AR0 | Angular | 7.000" | 8.500" | 0.75" | Open | Brass |
| KF075AR0 | Angular | 7.500" | 9.000" | 0.75" | Open | Brass |
| KF080AR0 | Angular | 8.000" | 9.500" | 0.75" | Open | Brass |
| KF090AR0 | Angular | 9.000" | 10.500" | 0.75" | Open | Brass |
| KF100AR0 | Angular | 10.000" | 11.500" | 0.75" | Open | Brass |
| KF100AR0 | Angular | 11.000" | 12.500" | 0.75" | Open | Brass |
| KF120AR0 | Angular | 12.000" | 13.500" | 0.75" | Open | Brass |
| KF140AR0 | Angular | 14.000" | 15.500" | 0.75" | Open | Brass |
| KF160AR0 | Angular | 16.000" | 17.500" | 0.75" | Open | Brass |
| KF180AR0 | Angular | 18.000" | 19.500" | 0.75" | Open | Brass |
| KF200AR0 | Angular | 20.000" | 21.500" | 0.75" | Open | Brass |
| KF250AR0 | Angular | 25.000" | 26.500" | 0.75" | Open | Brass |
| KF300AR0 | Angular | 30.000" | 31.500" | 0.75" | Open | Brass |
| KF350AR0 | Angular | 35.000" | 36.500" | 0.75" | Open | Brass |
| KF400AR0 | Angular | 40.000" | 41.500" | 0.75" | Open | Brass |
| KF040CP0 | Radial | 4.000" | 5.500" | 0.75" | Open | Brass |
| KF042CP0 | Radial | 4.250" | 5.750" | 0.75" | Open | Brass |
| KF045CP0 | Radial | 4.500" | 6.000" | 0.75" | Open | Brass |
| KF047CP0 | Radial | 4.750" | 6.250" | 0.75" | Open | Brass |
| KF050CP0 | Radial | 5.000" | 6.500" | 0.75" | Open | Brass |
| KF055CP0 | Radial | 5.500" | 7.000" | 0.75" | Open | Brass |
| KF060CP0 | Radial | 6.000" | 7.500" | 0.75" | Open | Brass |
| KF065CP0 | Radial | 6.500" | 8.000" | 0.75" | Open | Brass |
| KF070CP0 | Radial | 7.000" | 8.500" | 0.75" | Open | Brass |
| KF075CP0 | Radial | 7.500" | 9.000" | 0.75" | Open | Brass |
| KF080CP0 | Radial | 8.000" | 9.500" | 0.75" | Open | Brass |
| KF090CP0 | Radial | 9.000" | 10.500" | 0.75" | Open | Brass |
| KF100CP0 | Radial | 10.000" | 11.500" | 0.75" | Open | Brass |
| KF110CP0 | Radial | 11.000" | 12.500" | 0.75" | Open | Brass |
| KF120CP0 | Radial | 12.000" | 13.500" | 0.75" | Open | Brass |
| KF140CP0 | Radial | 14.000" | 15.500" | 0.75" | Open | Brass |
| KF160CP0 | Radial | 16.000" | 17.500" | 0.75" | Open | Brass |
| KF180CP0 | Radial | 18.000" | 19.500" | 0.75" | Open | Brass |
| KF200CP0 | Radial | 20.000" | 21.500" | 0.75" | Open | Brass |
| KF250CP0 | Radial | 25.000" | 26.500" | 0.75" | Open | Brass |
| KF300CP0 | Radial | 30.000" | 31.500" | 0.75" | Open | Brass |
| KF350CP0 | Radial | 35.000" | 36.500" | 0.75" | Open | Brass |
| KF400CP0 | Radial | 40.000" | 41.500" | 0.75" | Open | Brass |
| KF040XP0 | Four Point | 4.000" | 5.500" | 0.75" | Open | Brass |
| KF042XP0 | Four Point | 4.250" | 5.750" | 0.75" | Open | Brass |
| KF045XP0 | Four Point | 4.500" | 6.000" | 0.75" | Open | Brass |
| KF047XP0 | Four Point | 4.750" | 6.250" | 0.75" | Open | Brass |
| KF050XP0 | Four Point | 5.000" | 6.500" | 0.75" | Open | Brass |
| KF055XP0 | Four Point | 5.500" | 7.000" | 0.75" | Open | Brass |
| KF060XP0 | Four Point | 6.000" | 7.500" | 0.75" | Open | Brass |
| KF065XP0 | Four Point | 6.500" | 8.000" | 0.75" | Open | Brass |
| KF070XP0 | Four Point | 7.000" | 9.000" | 0.3125" | Open | Brass |
| KF075XP0 | Four Point | 7.500" | 9.000" | 0.75" | Open | Brass |
| KF080XP0 | Four Point | 8.000" | 9.500" | 0.75" | Open | Brass |
| KF090XP0 | Four Point | 9.000" | 10.500" | 0.75" | Open | Brass |
| KF100XP0 | Four Point | 10.000" | 11.500" | 0.75" | Open | Brass |
| KF110XP0 | Four Point | 11.000" | 12.500" | 0.75" | Open | Brass |
| KF120XP0 | Four Point | 12.000" | 13.500" | 0.75" | Open | Brass |
| KF140XP0 | Four Point | 14.000" | 15.500" | 0.75" | Open | Brass |
| KF160XP0 | Four Point | 16.000" | 17.500" | 0.75" | Open | Brass |
| KF180XP0 | Four Point | 18.000" | 19.500" | 0.75" | Open | Brass |
| KF200XP0 | Four Point | 20.000" | 21.500" | 0.75" | Open | Brass |
| KF250XP0 | Four Point | 25.000" | 26.500" | 0.75" | Open | Brass |
| KF300XP0 | Four Point | 30.000" | 31.500" | 0.75" | Open | Brass |
| KF350XP0 | Four Point | 35.000" | 36.500" | 0.75" | Open | Brass |
| KF400XP0 | Four Point | 40.000" | 41.500" | 0.75" | Open | Brass |
| KG040AR0 | Angular | 4.000" | 6.000" | 1" | Open | Brass |
| KG042AR0 | Angular | 4.250" | 6.250" | 1" | Open | Brass |
| KG045AR0 | Angular | 4.500" | 6.500" | 1" | Open | Brass |
| KG047AR0 | Angular | 4.750" | 6.750" | 1" | Open | Brass |
| KG050AR0 | Angular | 5.000" | 7.000" | 1" | Open | Brass |
| KG055AR0 | Angular | 5.500" | 7.500" | 1" | Open | Brass |
| KG060AR0 | Angular | 6.000" | 8.000" | 1" | Open | Brass |
| KG065AR0 | Angular | 6.500" | 8.500" | 1" | Open | Brass |
| KG070AR0 | Angular | 7.000" | 9.000" | 1" | Open | Brass |
| KG075AR0 | Angular | 7.500" | 9.500" | 1" | Open | Brass |
| KG080AR0 | Angular | 8.000" | 10.000" | 1" | Open | Brass |
| KG090AR0 | Angular | 9.000" | 11.000" | 1" | Open | Brass |
| KG100AR0 | Angular | 10.000" | 12.000" | 1" | Open | Brass |
| KG110AR0 | Angular | 11.000" | 13.000" | 1" | Open | Brass |
| KG120AR0 | Angular | 12.000" | 14.000" | 1" | Open | Brass |
| KG140AR0 | Angular | 14.000" | 16.000" | 1" | Open | Brass |
| KG160AR0 | Angular | 16.000" | 18.000" | 1" | Open | Brass |
| KG180AR0 | Angular | 18.000" | 20.000" | 1" | Open | Brass |
| KG200AR0 | Angular | 20.000" | 22.000" | 1" | Open | Brass |
| KG220AR0 | Angular | 22.000" | 24.000" | 1" | Open | Brass |
| KG250AR0 | Angular | 25.000" | 27.000" | 1" | Open | Brass |
| KG300AR0 | Angular | 30.000" | 32.000" | 1" | Open | Brass |
| KG350AR0 | Angular | 35.000" | 37.000" | 1" | Open | Brass |
| KG400AR0 | Angular | 40.000" | 42.000" | 1" | Open | Brass |
| KG040CP0 | Radial | 4.000" | 6.000" | 1" | Open | Brass |
| KG042CP0 | Radial | 4.250" | 6.250" | 1" | Open | Brass |
| KG045CP0 | Radial | 4.500" | 6.500" | 1" | Open | Brass |
| KG047CP0 | Radial | 4.750" | 6.750" | 1" | Open | Brass |
| KG050CP0 | Radial | 5.000" | 7.000" | 1" | Open | Brass |
| KG055CP0 | Radial | 5.500" | 7.500" | 1" | Open | Brass |
| KG060CP0 | Radial | 6.000" | 8.000" | 1" | Open | Brass |
| KG065CP0 | Radial | 6.500" | 8.500" | 1" | Open | Brass |
| KG070CP0 | Radial | 7.000" | 9.000" | 1" | Open | Brass |
| KG075CP0 | Radial | 7.500" | 9.500" | 1" | Open | Brass |
| KG080CP0 | Radial | 8.000" | 10.000" | 1" | Open | Brass |
| KG090CP0 | Radial | 9.000" | 11.000" | 1" | Open | Brass |
| KG100CP0 | Radial | 10.000" | 12.000" | 1" | Open | Brass |
| KG110CP0 | Radial | 11.000" | 13.000" | 1" | Open | Brass |
| KG120CP0 | Radial | 12.000" | 14.000" | 1" | Open | Brass |
| KG140CP0 | Radial | 14.000" | 16.000" | 1" | Open | Brass |
| KG160CP0 | Radial | 16.000" | 18.000" | 1" | Open | Brass |
| KG180CP0 | Radial | 18.000" | 20.000" | 1" | Open | Brass |
| KG200CP0 | Radial | 20.000" | 22.000" | 1" | Open | Brass |
| KG220CP0 | Radial | 22.000" | 24.000" | 1" | Open | Brass |
| KG250CP0 | Radial | 25.000" | 27.000" | 1" | Open | Brass |
| KG300CP0 | Radial | 30.000" | 32.000" | 1" | Open | Brass |
| KG350CP0 | Radial | 35.000" | 37.000" | 1" | Open | Brass |
| KG400CP0 | Radial | 40.000" | 42.000" | 1" | Open | Brass |
| KG040XP0 | Four Point | 4.000" | 6.000" | 1" | Open | Brass |
| KG042XP0 | Four Point | 4.250" | 6.250" | 1" | Open | Brass |
| KG045XP0 | Four Point | 4.500" | 6.500" | 1" | Open | Brass |
| KG047XP0 | Four Point | 4.750" | 6.750" | 1" | Open | Brass |
| KG050XP0 | Four Point | 5.000" | 7.000" | 1" | Open | Brass |
| KG055XP0 | Four Point | 5.500" | 7.500" | 1" | Open | Brass |
| KG060XP0 | Four Point | 6.000" | 8.000" | 1" | Open | Brass |
| KG065XP0 | Four Point | 6.500" | 8.500" | 1" | Open | Brass |
| KG070XP0 | Four Point | 7.000" | 9.000" | 1" | Open | Brass |
| KG075XP0 | Four Point | 7.500" | 9.500" | 1" | Open | Brass |
| KG080XP0 | Four Point | 8.000" | 10.000" | 1" | Open | Brass |
| KG090XP0 | Four Point | 9.000" | 11.000" | 1" | Open | Brass |
| KG100XP0 | Four Point | 10.000" | 12.000" | 1" | Open | Brass |
| KG110XP0 | Four Point | 11.000" | 13.000" | 1" | Open | Brass |
| KG120XP0 | Four Point | 12.000" | 14.000" | 1" | Open | Brass |
| KG140XP0 | Four Point | 14.000" | 16.000" | 1" | Open | Brass |
| KG160XP0 | Four Point | 16.000" | 18.000" | 1" | Open | Brass |
| KG180XP0 | Four Point | 18.000" | 20.000" | 1" | Open | Brass |
| KG200XP0 | Four Point | 20.000" | 22.000" | 1" | Open | Brass |
| KG220XP0 | Four Point | 22.000" | 24.000" | 1" | Open | Brass |
| KG250XP0 | Four Point | 25.000" | 27.000" | 1" | Open | Brass |
| KG300XP0 | Four Point | 30.000" | 32.000" | 1" | Open | Brass |
| KG350XP0 | Four Point | 35.000" | 37.000" | 1" | Open | Brass |
| KG400XP0 | Four Point | 40.000" | 42.000" | 1" | Open | Brass |
Thin Section Sealed Bearings
| Product Number | BEARING TYPE | Bore Dia d | Outside Dia D | Width B | Seal Type | Cage Material |
| JHA10CL0 | Radial | 1.000" | 1.375" | 0.25" | Sealed | Nylon |
| JHA15CL0 | Radial | 1.500" | 1.875" | 0.25" | Sealed | Nylon |
| JHA17CL0 | Radial | 1.750" | 2.125" | 0.25" | Sealed | Nylon |
| JHA10XL0 | Four Point | 1.000" | 1.375" | 0.25" | Sealed | Nylon |
| JHA15XL0 | Four Point | 1.500" | 1.875" | 0.25" | Sealed | Nylon |
| JHA17XL0 | Four Point | 1.750" | 2.125" | 0.25" | Sealed | Nylon |
| JA020CP0 | Radial | 2.000" | 2.500" | 0.25" | Sealed | Brass |
| JA025CP0 | Radial | 2.500" | 3.000" | 0.25" | Sealed | Brass |
| JA030CP0 | Radial | 3.000" | 3.500" | 0.25" | Sealed | Brass |
| JA035CP0 | Radial | 3.500" | 4.000" | 0.25" | Sealed | Brass |
| JA040CP0 | Radial | 4.000" | 4.500" | 0.25" | Sealed | Brass |
| JA042CP0 | Radial | 4.250" | 4.750" | 0.25" | Sealed | Brass |
| JA045CP0 | Radial | 4.500" | 5.000" | 0.25" | Sealed | Brass |
| JA047CP0 | Radial | 4.750" | 5.250" | 0.25" | Sealed | Brass |
| JA050CP0 | Radial | 5.000" | 5.500" | 0.25" | Sealed | Brass |
| JA055CP0 | Radial | 5.500" | 6.000" | 0.25" | Sealed | Brass |
| JA060CP0 | Radial | 6.000" | 6.500" | 0.25" | Sealed | Brass |
| JA065CP0 | Radial | 6.500" | 7.000" | 0.25" | Sealed | Brass |
| JA070CP0 | Radial | 7.000" | 7.500" | 0.25" | Sealed | Brass |
| JA075CP0 | Radial | 7.500" | 8.000" | 0.25" | Sealed | Brass |
| JA020XP0 | Four Point | 2.000" | 2.500" | 0.25" | Sealed | Brass |
| JA025XP0 | Four Point | 2.500" | 3.000" | 0.25" | Sealed | Brass |
| JA030XP0 | Four Point | 3.000" | 3.500" | 0.25" | Sealed | Brass |
| JA035XP0 | Four Point | 3.500" | 4.000" | 0.25" | Sealed | Brass |
| JA040XP0 | Four Point | 4.000" | 4.500" | 0.25" | Sealed | Brass |
| JA042XP0 | Four Point | 4.250" | 4.750" | 0.25" | Sealed | Brass |
| JA045XP0 | Four Point | 4.500" | 5.000" | 0.25" | Sealed | Brass |
| JA047XP0 | Four Point | 4.750" | 5.250" | 0.25" | Sealed | Brass |
| JA050XP0 | Four Point | 5.000" | 5.500" | 0.25" | Sealed | Brass |
| JA055XP0 | Four Point | 5.500" | 6.000" | 0.25" | Sealed | Brass |
| JA060XP0 | Four Point | 6.000" | 6.500" | 0.25" | Sealed | Brass |
| JA065XP0 | Four Point | 6.500" | 7.000" | 0.25" | Sealed | Brass |
| JA070XP0 | Four Point | 7.000" | 7.500" | 0.25" | Sealed | Brass |
| JA075XP0 | Four Point | 7.500" | 8.000" | 0.25" | Sealed | Brass |
| JB020CP0 | Radial | 2.000" | 2.625" | 0.3125" | Sealed | Brass |
| JB025CP0 | Radial | 2.500" | 3.125" | 0.3125" | Sealed | Brass |
| JB030CP0 | Radial | 3.000" | 3.625" | 0.3125" | Sealed | Brass |
| JB035CP0 | Radial | 3.500" | 4.125" | 0.3125" | Sealed | Brass |
| JB040CP0 | Radial | 4.000" | 4.625" | 0.3125" | Sealed | Brass |
| JB042CP0 | Radial | 4.250" | 4.875" | 0.3125" | Sealed | Brass |
| JB045CP0 | Radial | 4.500" | 5.125" | 0.3125" | Sealed | Brass |
| JB047CP0 | Radial | 4.750" | 5.375" | 0.3125" | Sealed | Brass |
| JB050CP0 | Radial | 5.000" | 5.625" | 0.3125" | Sealed | Brass |
| JB055CP0 | Radial | 5.500" | 6.125" | 0.3125" | Sealed | Brass |
| JB060CP0 | Radial | 6.000" | 6.625" | 0.3125" | Sealed | Brass |
| JB065CP0 | Radial | 6.500" | 7.125" | 0.3125" | Sealed | Brass |
| JB020XP0 | Four Point | 2.000" | 2.625" | 0.3125" | Sealed | Brass |
| JB025XP0 | Four Point | 2.500" | 3.125" | 0.3125" | Sealed | Brass |
| JB030XP0 | Four Point | 3.000" | 3.625" | 0.3125" | Sealed | Brass |
| JB035XP0 | Four Point | 3.500" | 4.125" | 0.3125" | Sealed | Brass |
| JB040XP0 | Four Point | 4.000" | 4.625" | 0.3125" | Sealed | Brass |
| JB042XP0 | Four Point | 4.250" | 4.875" | 0.3125" | Sealed | Brass |
| JB045XP0 | Four Point | 4.500" | 5.125" | 0.3125" | Sealed | Brass |
| JB047XP0 | Four Point | 4.750" | 5.375" | 0.3125" | Sealed | Brass |
| JB050XP0 | Four Point | 5.000" | 5.625" | 0.3125" | Sealed | Brass |
| JB055XP0 | Four Point | 5.500" | 6.125" | 0.3125" | Sealed | Brass |
| JB060XP0 | Four Point | 6.000" | 6.625" | 0.3125" | Sealed | Brass |
| JB065XP0 | Four Point | 6.500" | 7.125" | 0.3125" | Sealed | Brass |
| JU040CP0 | Radial | 4.000" | 4.750" | 0.5" | Sealed | Brass |
| JU042CP0 | Radial | 4.250" | 5.000" | 0.5" | Sealed | Brass |
| JU045CP0 | Radial | 4.500" | 5.250" | 0.5" | Sealed | Brass |
| JU047CP0 | Radial | 4.750" | 5.500" | 0.5" | Sealed | Brass |
| JU050CP0 | Radial | 5.000" | 5.750" | 0.5" | Sealed | Brass |
| JU055CP0 | Radial | 5.500" | 6.250" | 0.5" | Sealed | Brass |
| JU060CP0 | Radial | 6.000" | 6.750" | 0.5" | Sealed | Brass |
| JU065CP0 | Radial | 6.500" | 7.250" | 0.5" | Sealed | Brass |
| JU070CP0 | Radial | 7.000" | 7.750" | 0.5" | Sealed | Brass |
| JU075CP0 | Radial | 7.500" | 8.250" | 0.5" | Sealed | Brass |
| JU080CP0 | Radial | 8.000" | 8.750" | 0.5" | Sealed | Brass |
| JU085CP0 | Radial | 8.500" | 9.250" | 0.5" | Sealed | Brass |
| JU090CP0 | Radial | 9.000" | 9.750" | 0.5" | Sealed | Brass |
| JU100CP0 | Radial | 10.000" | 10.750" | 0.5" | Sealed | Brass |
| JU110CP0 | Radial | 11.000" | 11.750" | 0.5" | Sealed | Brass |
| JU120CP0 | Radial | 12.000" | 12.750" | 0.5" | Sealed | Brass |
| JU040XP0 | Four Point | 4.000" | 4.750" | 0.5" | Sealed | Brass |
| JU042XP0 | Four Point | 4.250" | 5.000" | 0.5" | Sealed | Brass |
| JU045XP0 | Four Point | 4.500" | 5.250" | 0.5" | Sealed | Brass |
| JU047XP0 | Four Point | 4.750" | 5.500" | 0.5" | Sealed | Brass |
| JU050XP0 | Four Point | 5.000" | 5.750" | 0.5" | Sealed | Brass |
| JU055XP0 | Four Point | 5.500" | 6.250" | 0.5" | Sealed | Brass |
| JU060XP0 | Four Point | 6.000" | 6.750" | 0.5" | Sealed | Brass |
| JU065XP0 | Four Point | 6.500" | 7.250" | 0.5" | Sealed | Brass |
| JU070XP0 | Four Point | 7.000" | 7.750" | 0.5" | Sealed | Brass |
| JU075XP0 | Four Point | 7.500" | 8.250" | 0.5" | Sealed | Brass |
| JU080XP0 | Four Point | 8.000" | 8.750" | 0.5" | Sealed | Brass |
| JU085XP0 | Four Point | 8.500" | 9.250" | 0.5" | Sealed | Brass |
| JU090XP0 | Four Point | 9.000" | 9.750" | 0.5" | Sealed | Brass |
| JU100XP0 | Four Point | 10.000" | 10.750" | 0.5" | Sealed | Brass |
| JU110XP0 | Four Point | 11.000" | 11.750" | 0.5" | Sealed | Brass |
| JU120XP0 | Four Point | 12.000" | 12.750" | 0.5" | Sealed | Brass |
| JG070CP0 | Radial | 7.000" | 9.000" | 1" | Sealed | Brass |
| JG075CP0 | Radial | 7.500" | 9.500" | 1" | Sealed | Brass |
| JG080CP0 | Radial | 8.000" | 10.000" | 1" | Sealed | Brass |
| JG090CP0 | Radial | 9.000" | 11.000" | 1" | Sealed | Brass |
| JG100CP0 | Radial | 10.000" | 12.000" | 1" | Sealed | Brass |
| JG110CP0 | Radial | 11.000" | 13.000" | 1" | Sealed | Brass |
| JG120CP0 | Radial | 12.000" | 14.000" | 1" | Sealed | Brass |
| JG140CP0 | Radial | 14.000" | 16.000" | 1" | Sealed | Brass |
| JG160CP0 | Radial | 16.000" | 18.000" | 1" | Sealed | Brass |
| JG180CP0 | Radial | 18.000" | 20.000" | 1" | Sealed | Brass |
| JG200CP0 | Radial | 20.000" | 22.000" | 1" | Sealed | Brass |
| JG220CP0 | Radial | 22.000" | 24.000" | 1" | Sealed | Brass |
| JG250CP0 | Radial | 25.000" | 27.000" | 1" | Sealed | Brass |
| JG300CP0 | Radial | 30.000" | 32.000" | 1" | Sealed | Brass |
| JG350CP0 | Radial | 35.000" | 37.000" | 1" | Sealed | Brass |
| JG400CP0 | Radial | 40.000" | 42.000" | 1" | Sealed | Brass |
| JG070XP0 | Four Point | 7.000" | 9.000" | 1" | Sealed | Brass |
| JG075XP0 | Four Point | 7.500" | 9.500" | 1" | Sealed | Brass |
| JG080XP0 | Four Point | 8.000" | 10.000" | 1" | Sealed | Brass |
| JG090XP0 | Four Point | 9.000" | 11.000" | 1" | Sealed | Brass |
| JG100XP0 | Four Point | 10.000" | 12.000" | 1" | Sealed | Brass |
| JG110XP0 | Four Point | 11.000" | 13.000" | 1" | Sealed | Brass |
| JG120XP0 | Four Point | 12.000" | 14.000" | 1" | Sealed | Brass |
| JG140XP0 | Four Point | 14.000" | 16.000" | 1" | Sealed | Brass |
| JG160XP0 | Four Point | 16.000" | 18.000" | 1" | Sealed | Brass |
| JG180XP0 | Four Point | 18.000" | 20.000" | 1" | Sealed | Brass |
| JG200XP0 | Four Point | 20.000" | 22.000" | 1" | Sealed | Brass |
| JG220XP0 | Four Point | 22.000" | 24.000" | 1" | Sealed | Brass |
| JG250XP0 | Four Point | 25.000" | 27.000" | 1" | Sealed | Brass |
| JG300XP0 | Four Point | 30.000" | 32.000" | 1" | Sealed | Brass |
| JG350XP0 | Four Point | 35.000" | 37.000" | 1" | Sealed | Brass |
| JG400XP0 | Four Point | 40.000" | 42.000" | 1" | Sealed | Brass |
Reali Slim Thin Section Metric
| Product Number | BEARING TYPE | Bore Dia d | Outside Dia D | Width B | Seal Type |
| K02508AR0 | Angular | 25 mm | 41 mm | 8 mm | Open |
| K05008AR0 | Angular | 50 mm | 66 mm | 8 mm | Open |
| K06008AR0 | Angular | 60 mm | 76 mm | 8 mm | Open |
| K07008AR0 | Angular | 70 mm | 86 mm | 8 mm | Open |
| K08008AR0 | Angular | 80 mm | 96 mm | 8 mm | Open |
| K09008AR0 | Angular | 90 mm | 106 mm | 8 mm | Open |
| K10008AR0 | Angular | 100 mm | 116 mm | 8 mm | Open |
| K11008AR0 | Angular | 110 mm | 126 mm | 8 mm | Open |
| K12008AR0 | Angular | 120 mm | 136 mm | 8 mm | Open |
| K13008AR0 | Angular | 130 mm | 146 mm | 8 mm | Open |
| K14008AR0 | Angular | 140 mm | 156 mm | 8 mm | Open |
| K15008AR0 | Angular | 150 mm | 166 mm | 8 mm | Open |
| K16008AR0 | Angular | 160 mm | 176 mm | 8 mm | Open |
| K17008AR0 | Angular | 170 mm | 186 mm | 8 mm | Open |
| K18008AR0 | Angular | 180 mm | 196 mm | 8 mm | Open |
| K19008AR0 | Angular | 190 mm | 206 mm | 8 mm | Open |
| K20008AR0 | Angular | 200 mm | 216 mm | 8 mm | Open |
| K25008AR0 | Angular | 250 mm | 266 mm | 8 mm | Open |
| K30008AR0 | Angular | 300 mm | 316 mm | 8 mm | Open |
| K32008AR0 | Angular | 320 mm | 336 mm | 8 mm | Open |
| K34008AR0 | Angular | 340 mm | 356 mm | 8 mm | Open |
| K36008AR0 | Angular | 360 mm | 376 mm | 8 mm | Open |
| K02508CP0 | Radial | 25 mm | 41 mm | 8 mm | Open |
| K05008CP0 | Radial | 50 mm | 66 mm | 8 mm | Open |
| K06008CP0 | Radial | 60 mm | 76 mm | 8 mm | Open |
| K07008CP0 | Radial | 70 mm | 86 mm | 8 mm | Open |
| K08008CP0 | Radial | 80 mm | 96 mm | 8 mm | Open |
| K09008CP0 | Radial | 90 mm | 106 mm | 8 mm | Open |
| K10008CP0 | Radial | 100 mm | 116 mm | 8 mm | Open |
| K11008CP0 | Radial | 110 mm | 126 mm | 8 mm | Open |
| K12008CP0 | Radial | 120 mm | 136 mm | 8 mm | Open |
| K13008CP0 | Radial | 130 mm | 146 mm | 8 mm | Open |
| K14008CP0 | Radial | 140 mm | 156 mm | 8 mm | Open |
| K15008CP0 | Radial | 150 mm | 166 mm | 8 mm | Open |
| K16008CP0 | Radial | 160 mm | 176 mm | 8 mm | Open |
| K17008CP0 | Radial | 170 mm | 186 mm | 8 mm | Open |
| K18008CP0 | Radial | 180 mm | 196 mm | 8 mm | Open |
| K19008CP0 | Radial | 190 mm | 206 mm | 8 mm | Open |
| K20008CP0 | Radial | 200 mm | 216 mm | 8 mm | Open |
| K25008CP0 | Radial | 250 mm | 266 mm | 8 mm | Open |
| K30008CP0 | Radial | 300 mm | 316 mm | 8 mm | Open |
| K32008CP0 | Radial | 320 mm | 336 mm | 8 mm | Open |
| K34008CP0 | Radial | 340 mm | 356 mm | 8 mm | Open |
| K36008CP0 | Radial | 360 mm | 376 mm | 8 mm | Open |
| K02508XP0 | Four Point | 25 mm | 41 mm | 8 mm | Open |
| K05008XP0 | Four Point | 50 mm | 66 mm | 8 mm | Open |
| K06008XP0 | Four Point | 60 mm | 76 mm | 8 mm | Open |
| K07008XP0 | Four Point | 70 mm | 86 mm | 8 mm | Open |
| K08008XP0 | Four Point | 80 mm | 96 mm | 8 mm | Open |
| K09008XP0 | Four Point | 90 mm | 106 mm | 8 mm | Open |
| K10008XP0 | Four Point | 100 mm | 116 mm | 8 mm | Open |
| K11008XP0 | Four Point | 110 mm | 126 mm | 8 mm | Open |
| K12008XP0 | Four Point | 120 mm | 136 mm | 8 mm | Open |
| K13008XP0 | Four Point | 130 mm | 146 mm | 8 mm | Open |
| K14008XP0 | Four Point | 140 mm | 156 mm | 8 mm | Open |
| K15008Xp0 | Four Point | 150 mm | 166 mm | 8 mm | Open |
| K16008XP0 | Four Point | 160 mm | 176 mm | 8 mm | Open |
| K17008XP0 | Four Point | 170 mm | 186 mm | 8 mm | Open |
| K18008XP0 | Four Point | 180 mm | 196 mm | 8 mm | Open |
| K19008XP0 | Four Point | 190 mm | 206 mm | 8 mm | Open |
| K20008XP0 | Four Point | 200 mm | 216 mm | 8 mm | Open |
| K25008XP0 | Four Point | 250 mm | 266 mm | 8 mm | Open |
| K30008XP0 | Four Point | 300 mm | 316 mm | 8 mm | Open |
| K32008XP0 | Four Point | 320 mm | 336 mm | 8 mm | Open |
| K34008XP0 | Four Point | 340 mm | 356 mm | 8 mm | Open |
| K36008XP0 | Four Point | 360 mm | 376 mm | 8 mm | Open |
| J02508CP0 | Radial | 25 mm | 41 mm | 8 mm | Sealed |
| J05008CP0 | Radial | 50 mm | 66 mm | 8 mm | Sealed |
| J06008CP0 | Radial | 60 mm | 76 mm | 8 mm | Sealed |
| J07008CP0 | Radial | 70 mm | 86 mm | 8 mm | Sealed |
| J07008CP0 | Radial | 70 mm | 86 mm | 8 mm | Sealed |
| J08008CP0 | Radial | 80 mm | 96 mm | 8 mm | Sealed |
| J09008CP0 | Radial | 90 mm | 106 mm | 8 mm | Sealed |
| J10008CP0 | Radial | 100 mm | 116 mm | 8 mm | Sealed |
| J11008CP0 | Radial | 110 mm | 126 mm | 8 mm | Sealed |
| J12008CP0 | Radial | 120 mm | 136 mm | 8 mm | Sealed |
| J13008CP0 | Radial | 130 mm | 146 mm | 8 mm | Sealed |
| J14008CP0 | Radial | 140 mm | 156 mm | 8 mm | Sealed |
| J15008CP0 | Radial | 150 mm | 166 mm | 8 mm | Sealed |
| J16008CP0 | Radial | 160 mm | 176 mm | 8 mm | Sealed |
| J17008CP0 | Radial | 170 mm | 186 mm | 8 mm | Sealed |
| J02508XP0 | Four Point | 25 mm | 41 mm | 8 mm | Sealed |
| J05008XP0 | Four Point | 50 mm | 66 mm | 8 mm | Sealed |
| J06008XP0 | Four Point | 60 mm | 76 mm | 8 mm | Sealed |
| J07008XP0 | Four Point | 70 mm | 86 mm | 8 mm | Sealed |
| J08008XP0 | Four Point | 80 mm | 96 mm | 8 mm | Sealed |
| J09008XP0 | Four Point | 90 mm | 106 mm | 8 mm | Sealed |
| J10008XP0 | Four Point | 100 mm | 116 mm | 8 mm | Sealed |
| J11008XP0 | Four Point | 110 mm | 126 mm | 8 mm | Sealed |
| J12008XP0 | Four Point | 120 mm | 136 mm | 8 mm | Sealed |
| J13008XP0 | Four Point | 130 mm | 146 mm | 8 mm | Sealed |
| J14008XP0 | Four Point | 140 mm | 156 mm | 8 mm | Sealed |
| J15008XP0 | Four Point | 150 mm | 166 mm | 8 mm | Sealed |
| J16008XP0 | Four Point | 160 mm | 176 mm | 8 mm | Sealed |
| J17008XP0 | Four Point | 170 mm | 186 mm | 8 mm | Sealed |
| K02513AR0 | Angular | 25 mm | 51 mm | 13 mm | Open |
| K05013AR0 | Angular | 50 mm | 76 mm | 13 mm | Open |
| K06013AR0 | Angular | 60 mm | 86 mm | 13 mm | Open |
| K07013AR0 | Angular | 70 mm | 96 mm | 13 mm | Open |
| K08013AR0 | Angular | 80 mm | 106 mm | 13 mm | Open |
| K09013AR0 | Angular | 90 mm | 116 mm | 13 mm | Open |
| K10013AR0 | Angular | 100 mm | 126 mm | 13 mm | Open |
| K11013AR0 | Angular | 110 mm | 136 mm | 13 mm | Open |
| K12013AR0 | Angular | 120 mm | 146 mm | 13 mm | Open |
| K13013AR0 | Angular | 130 mm | 156 mm | 13 mm | Open |
| K14013AR0 | Angular | 140 mm | 166 mm | 13 mm | Open |
| K15013AR0 | Angular | 150 mm | 176 mm | 13 mm | Open |
| K16013AR0 | Angular | 160 mm | 186 mm | 13 mm | Open |
| K17013AR0 | Four Point | 170 mm | 196 mm | 13 mm | Open |
| K18013XP0 | Four Point | 180 mm | 206 mm | 13 mm | Open |
| K19013XP0 | Four Point | 190 mm | 216 mm | 13 mm | Open |
| K20013XP0 | Four Point | 200 mm | 226 mm | 13 mm | Open |
| K25013XP0 | Four Point | 250 mm | 276 mm | 13 mm | Open |
| K30013XP0 | Four Point | 300 mm | 326 mm | 13 mm | Open |
| K32013XP0 | Four Point | 320 mm | 346 mm | 13 mm | Open |
| K34013XP0 | Four Point | 340 mm | 366 mm | 13 mm | Open |
| K36013XP0 | Four Point | 360 mm | 386 mm | 13 mm | Open |
| K02520AR0 | Angular | 25 mm | 65 mm | 20 mm | Open |
| K05020AR0 | Angular | 50 mm | 90 mm | 20 mm | Open |
| K06020AR0 | Angular | 60 mm | 100 mm | 20 mm | Open |
| K07020AR0 | Angular | 70 mm | 110 mm | 20 mm | Open |
| K08020AR0 | Angular | 80 mm | 120 mm | 20 mm | Open |
| K09020AR0 | Angular | 90 mm | 130 mm | 20 mm | Open |
| K10020AR0 | Angular | 100 mm | 140 mm | 20 mm | Open |
| K11020AR0 | Angular | 110 mm | 150 mm | 20 mm | Open |
| K12020AR0 | Angular | 120 mm | 160 mm | 20 mm | Open |
| K13020AR0 | Angular | 130 mm | 170 mm | 20 mm | Open |
| K14020AR0 | Angular | 140 mm | 180 mm | 20 mm | Open |
| K15020AR0 | Angular | 150 mm | 190 mm | 20 mm | Open |
| K16020AR0 | Angular | 160 mm | 200 mm | 20 mm | Open |
| K17020AR0 | Angular | 170 mm | 210 mm | 20 mm | Open |
| K18020AR0 | Angular | 180 mm | 220 mm | 20 mm | Open |
| K19020AR0 | Angular | 190 mm | 230 mm | 20 mm | Open |
| K20020AR0 | Angular | 200 mm | 240 mm | 20 mm | Open |
| K25020AR0 | Angular | 250 mm | 290 mm | 20 mm | Open |
| K30020AR0 | Angular | 300 mm | 340 mm | 20 mm | Open |
| K32020AR0 | Angular | 320 mm | 360 mm | 20 mm | Open |
| K34020AR0 | Angular | 340 mm | 380 mm | 20 mm | Open |
| K36020AR0 | Angular | 360 mm | 400 mm | 20 mm | Open |
| K02520CP0 | Radial | 25 mm | 65 mm | 20 mm | Open |
| K05020CP0 | Radial | 50 mm | 90 mm | 20 mm | Open |
| K06020CP0 | Radial | 60 mm | 100 mm | 20 mm | Open |
| K07020CP0 | Radial | 70 mm | 110 mm | 20 mm | Open |
| K08020CP0 | Radial | 80 mm | 120 mm | 20 mm | Open |
| K09020CP0 | Radial | 90 mm | 130 mm | 20 mm | Open |
| K10020CP0 | Radial | 100 mm | 140 mm | 20 mm | Open |
| K11020CP0 | Radial | 110 mm | 150 mm | 20 mm | Open |
| K12020CP0 | Radial | 120 mm | 160 mm | 20 mm | Open |
| K13020CP0 | Radial | 130 mm | 170 mm | 20 mm | Open |
| K14020CP0 | Radial | 140 mm | 180 mm | 20 mm | Open |
| K15020CP0 | Radial | 150 mm | 190 mm | 20 mm | Open |
| K16020CP0 | Radial | 160 mm | 200 mm | 20 mm | Open |
| K17020CP0 | Radial | 170 mm | 210 mm | 20 mm | Open |
| K18020CP0 | Radial | 180 mm | 220 mm | 20 mm | Open |
| K19020CP0 | Radial | 190 mm | 230 mm | 20 mm | Open |
| K20020CP0 | Radial | 200 mm | 240 mm | 20 mm | Open |
| K25020CP0 | Radial | 250 mm | 290 mm | 20 mm | Open |
| K30020CP0 | Radial | 300 mm | 340 mm | 20 mm | Open |
| K32020CP0 | Radial | 320 mm | 360 mm | 20 mm | Open |
| K34020CP0 | Radial | 340 mm | 380 mm | 20 mm | Open |
| K36020CP0 | Radial | 360 mm | 400 mm | 20 mm | Open |
| K02520XP0 | Four Point | 25 mm | 65 mm | 20 mm | Open |
| K05020XP0 | Four Point | 50 mm | 90 mm | 20 mm | Open |
| K06020XP0 | Four Point | 60 mm | 100 mm | 20 mm | Open |
| K07020XP0 | Four Point | 70 mm | 110 mm | 20 mm | Open |
| K08020XP0 | Four Point | 80 mm | 120 mm | 20 mm | Open |
| K09020XP0 | Four Point | 90 mm | 130 mm | 20 mm | Open |
| K10020XP0 | Four Point | 100 mm | 140 mm | 20 mm | Open |
| K11020XP0 | Four Point | 110 mm | 150 mm | 20 mm | Open |
| K12020XP0 | Four Point | 120 mm | 160 mm | 20 mm | Open |
| K13020XP0 | Four Point | 130 mm | 170 mm | 20 mm | Open |
| K14020XP0 | Four Point | 140 mm | 180 mm | 20 mm | Open |
| K15020XP0 | Four Point | 150 mm | 190 mm | 20 mm | Open |
| K16020XP0 | Four Point | 160 mm | 200 mm | 20 mm | Open |
| K17020XP0 | Four Point | 170 mm | 210 mm | 20 mm | Open |
| K18020XP0 | Four Point | 180 mm | 220 mm | 20 mm | Open |
| K19020XP0 | Four Point | 190 mm | 230 mm | 20 mm | Open |
| K20020XP0 | Four Point | 200 mm | 240 mm | 20 mm | Open |
| K25020XP0 | Four Point | 250 mm | 290 mm | 20 mm | Open |
| K30020XP0 | Four Point | 300 mm | 340 mm | 20 mm | Open |
| K32020XP0 | Four Point | 320 mm | 360 mm | 20 mm | Open |
| K34020XP0 | Four Point | 340 mm | 380 mm | 20 mm | Open |
| K36020XP0 | Four Point | 360 mm | 400 mm | 20 mm | Open |
-Ultra Slim Extra Thin Section
| Product Number | BEARING TYPE | Bore Dia d | Outside Dia D | Width B | Seal Type | Material |
| S03503AS0 | Angular | 35 mm | 41 mm | 2.5 mm | Open | Stainless Steel |
| S06003AS0 | Angular | 60 mm | 66 mm | 2.5 mm | Open | Stainless Steel |
| S07003AS0 | Angular | 70 mm | 76 mm | 2.5 mm | Open | Stainless Steel |
| S07403AS0 | Angular | 74 mm | 80 mm | 2.5 mm | Open | Stainless Steel |
| S08003AS0 | Angular | 80 mm | 86 mm | 2.5 mm | Open | Stainless Steel |
| S09003AS0 | Angular | 90 mm | 96 mm | 2.5 mm | Open | Stainless Steel |
| S10003AS0 | Angular | 100 mm | 106 mm | 2.5 mm | Open | Stainless Steel |
| S11003AS0 | Angular | 110 mm | 116 mm | 2.5 mm | Open | Stainless Steel |
| S12003AS0 | Angular | 120 mm | 126 mm | 2.5 mm | Open | Stainless Steel |
| S13003AS0 | Angular | 130 mm | 136 mm | 2.5 mm | Open | Stainless Steel |
| S14003AS0 | Angular | 140 mm | 146 mm | 2.5 mm | Open | Stainless Steel |
| S15003AS0 | Angular | 150 mm | 156 mm | 2.5 mm | Open | Stainless Steel |
| S16003AS0 | Angular | 160 mm | 166 mm | 2.5 mm | Open | Stainless Steel |
| S17003AS0 | Angular | 170 mm | 176 mm | 2.5 mm | Open | Stainless Steel |
| S03503CS0 | Radial | 35 mm | 41 mm | 2.5 mm | Open | Stainless Steel |
| S06003CS0 | Radial | 60 mm | 66 mm | 2.5 mm | Open | Stainless Steel |
| S07003CS0 | Radial | 70 mm | 76 mm | 2.5 mm | Open | Stainless Steel |
| S07403CS0 | Radial | 74 mm | 80 mm | 2.5 mm | Open | Stainless Steel |
| S08003CS0 | Radial | 80 mm | 86 mm | 2.5 mm | Open | Stainless Steel |
| S09003CS0 | Radial | 90 mm | 96 mm | 2.5 mm | Open | Stainless Steel |
| S10003CS0 | Radial | 100 mm | 106 mm | 2.5 mm | Open | Stainless Steel |
| S11003CS0 | Radial | 110 mm | 116 mm | 2.5 mm | Open | Stainless Steel |
| S12003CS0 | Radial | 120 mm | 126 mm | 2.5 mm | Open | Stainless Steel |
| S13003CS0 | Radial | 130 mm | 136 mm | 2.5 mm | Open | Stainless Steel |
| S14003CS0 | Radial | 140 mm | 146 mm | 2.5 mm | Open | Stainless Steel |
| S15003CS0 | Radial | 150 mm | 156 mm | 2.5 mm | Open | Stainless Steel |
| S16003CS0 | Radial | 160 mm | 166 mm | 2.5 mm | Open | Stainless Steel |
| S17003CS0 | Radial | 170 mm | 176 mm | 2.5 mm | Open | Stainless Steel |
| S03503XS0 | Four Point | 35 mm | 41 mm | 2.5 mm | Open | Stainless Steel |
| S06003XS0 | Four Point | 60 mm | 66 mm | 2.5 mm | Open | Stainless Steel |
| S07003XS0 | Four Point | 70 mm | 76 mm | 2.5 mm | Open | Stainless Steel |
| S07403XS0 | Four Point | 74 mm | 80 mm | 2.5 mm | Open | Stainless Steel |
| S08003XS0 | Four Point | 80 mm | 86 mm | 2.5 mm | Open | Stainless Steel |
| S09003XS0 | Four Point | 90 mm | 96 mm | 2.5 mm | Open | Stainless Steel |
| S10003XS0 | Four Point | 100 mm | 106 mm | 2.5 mm | Open | Stainless Steel |
| S11003XS0 | Four Point | 110 mm | 116 mm | 2.5 mm | Open | Stainless Steel |
| S12003XS0 | Four Point | 120 mm | 126 mm | 2.5 mm | Open | Stainless Steel |
| S13003XS0 | Four Point | 130 mm | 136 mm | 2.5 mm | Open | Stainless Steel |
| S14003XS0 | Four Point | 140 mm | 146 mm | 2.5 mm | Open | Stainless Steel |
| S15003XS0 | Four Point | 150 mm | 156 mm | 2.5 mm | Open | Stainless Steel |
| S16003XS0 | Four Point | 160 mm | 166 mm | 2.5 mm | Open | Stainless Steel |
| S17003XS0 | Four Point | 170 mm | 176 mm | 2.5 mm | Open | Stainless Steel |
